VITAL Lever Hoist Spare Parts
Vital® lever hoist spare parts available on request from Toco Lifting, with expert repair, load testing and recertification by an LME 008 entity. Serving South Africa and SADC from Germiston and Cape Town.
Vital
Vital · VITAL® Lever Hoists
VITAL® Lever Hoists — Sole Southern African Distributor
Toco Lifting (Pty) Ltd is the sole authorised distributor of Vital® lever hoists in Southern Africa, supplying the Vital® VR2 series of ratchet lever hoists with capacities from 0.25 ton to 20 ton. Vital® lever hoists comply with SANS 1636 and are fitted with SANS 1592 load chain. Each unit is supplied on a standard 3 metre lift and ships with a Performance (Load Test) Certificate. Toco Lifting is a registered Lifting Machinery Entity (LME No. 008) and performance tests, certifies and re-certifies the equipment it supplies through its own workshop, under the oversight of a dedicated Lifting Machinery Inspector and Team.
Toco Lifting is the sole Southern African Distributors of VITAL ® lever hoists. These SANS/OSH Act approved heavy-duty hoists are ergonomically designed for maximum output efficiency and safe operation and are fitted with overload protection devices. Lever hoists are portable lifting devices used in factories, mines, farms, construction sites, wharves, docks and warehouses for a wide variety of lifting and materials handling operations. Capacities range from 0.25 ton to 9 ton.
- Supplied by a registered LME (LME 008)
- Sole Southern African distributor
- Made in Osaka, Japan
- Enquiry only, quoted to your load
Delivery and lead time: [DELIVERY & LEAD TIME: CONFIRM WITH TOCO]
Toco Lifting has been the sole authorised Southern African distributor of Vital® chain blocks and lever hoists since 20 July 2018, appointed by Vital Chain Block Mfg. Co., Ltd. of Osaka, Japan (view distributorship certificate (PDF)). Vital began manufacturing in Osaka in 1933 and was formally incorporated as Vital Chain Block Mfg. Co., Ltd. in 1972. The Vital® factory manufactures to Japanese Industrial Standards (JIS) and International Organization for Standardization (ISO) specifications.
Capacity range and standard lift
Toco supplies the Vital® VR2 series of lever hoists, plus an independent series, across a capacity range of 0.25, 0.5, 0.75, 1, 1.5, 2, 3, 5, 6, 7.5, 10, 15 and 20 ton. Units are supplied as standard on a 3 metre lift; other lift heights are available on request. The VR2 lever hoist is a compact, robust ratchet hoist for lifting, lowering, pulling and tensioning, and operates in any position.
Standards and compliance
| SANS 1636 | South African National Standard for lever hoists. Vital® lever hoists are manufactured and tested to SANS 1636. |
| SANS 500 | Inspection, maintenance and testing of lever hoists. |
| SANS 1592 | Short-link alloy steel load chain used in the lever hoist. |
| JIS & ISO | The Vital® factory in Osaka, Japan manufactures to Japanese Industrial Standards and ISO specifications. |
| LME 008 | Toco Lifting holds Lifting Machinery Entity registration No. 008, issued by the Department of Labour under DMR 18(5) of the OHS Act, 1993, for examination and performance testing of lifting machinery. |
Toco tests and certifies Vital® lever hoists – not only supplies them
A lever hoist can suspend and hold a load on its own, so it is examined and performance tested (load tested) and issued with a Performance (Load Test) Certificate – the certificate class for equipment that can suspend or halt motion automatically once input energy stops. Toco performance tests Vital® lever hoists in its own workshop on a SANAS-calibrated load cell and re-certifies them for the life of the equipment under the oversight of a dedicated Lifting Machinery Inspector and Team. Lifting tackle in use must be re-inspected at intervals not exceeding three months under DMR 18(10)(e); a Performance (Load Test) Certificate is valid for 12 months.
Features

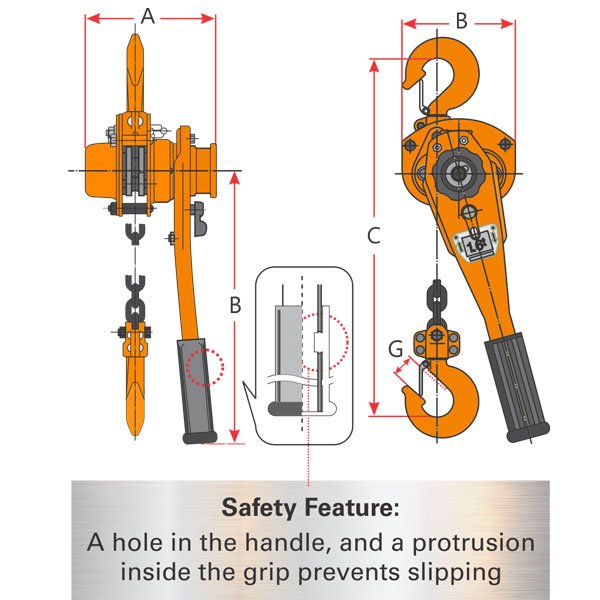

- Anti-slip safety handle – a hole in the handle and a corresponding protrusion inside the grip stop the handle slipping out of the operator’s hand during a pull.
- Optional overload protection – an optional slip-clutch overload protection device is factory-preset to engage at approximately 110% to 125% of the rated working load limit.
- Idling operation for fast, free chain adjustment before taking up the load.
- Spare parts available on request.
Where Vital® lever hoists are used
Vital® lever hoists are used wherever a compact, high-strength hoist is needed for lifting, lowering, pulling or tensioning – for example in mining, construction and plant maintenance and shutdown work. They are equally suited to confined-space rigging and general industrial lifting.
Frequently asked questions
What is a Vital® lever hoist?
A Vital® lever hoist is a manual ratchet hoist that lifts, lowers, pulls and tensions a load using a hand lever. Toco supplies the Vital® VR2 series from 0.25 to 20 ton, on a standard 3 metre lift, each with a Performance (Load Test) Certificate.
Is Toco the official Vital® distributor in Southern Africa?
Yes. Toco Lifting is the sole authorised distributor of Vital® chain blocks and lever hoists in Southern Africa, appointed directly by Vital Chain Block Mfg. Co., Ltd. of Osaka, Japan, on 20 July 2018.
What capacities does Toco supply?
Toco supplies Vital® lever hoists from 0.25 ton up to 20 ton (0.25, 0.5, 0.75, 1, 1.5, 2, 3, 5, 6, 7.5, 10, 15 and 20 ton), as standard on a 3 metre lift, with other lift heights available on request.
What standards do Vital® lever hoists meet?
Vital® lever hoists comply with SANS 1636, use SANS 1592 load chain, and are inspected, maintained and tested in line with SANS 500. The Vital® factory manufactures to JIS and ISO specifications.
What is the difference between a chain block and a lever hoist?
A chain block is operated with a hand chain and is normally used for vertical lifting from an overhead point. A lever hoist is operated with a hand lever and can pull or tension a load in any direction, which makes it well suited to confined spaces and horizontal or angled work.
Are Vital® lever hoists performance tested?
Yes. Because a lever hoist can suspend a load on its own, each unit is performance tested (load tested) and issued with a Performance (Load Test) Certificate. Toco carries out this testing in-house under LME 008.
How often must a lever hoist be re-tested?
Lifting tackle in use must be re-inspected at intervals not exceeding three months under DMR 18(10)(e), and a Performance (Load Test) Certificate is valid for 12 months. Toco re-inspects and re-certifies equipment it has supplied.
Do Vital® lever hoists have overload protection?
An optional slip-clutch overload protection device is available, factory-preset to engage at approximately 110% to 125% of the rated working load limit.
Can I get spare parts?
Yes, Vital® lever hoist spare parts are available on request.
How do I get a quote?
Tell Toco the capacity and lift height you need and our team will quote. Standard 3 metre lifts are supplied from stock where available; other lift heights are made up on request.
