Ratchet and Lever Type Load Binders

Quick facts: ratchet and lever load binders

Product	Ratchet and lever type load binders
Use	Load restraint and cargo securement, not for lifting
Types	Ratchet binder and lever (snap) binder
Used with	10 mm and 13 mm transport chain
Standards	AS 4344 and EN 12195 (load restraint)
Working load limit	Set by the binder and matched transport chain, confirmed on enquiry
Certificate	Manufacturer documentation, on enquiry
Supplied by	Toco Lifting, South Africa and SADC, since 2002

Toco Lifting is a Department of Labour approved Lifting Machinery Entity (LME No. 008) and supplies load binders and lashing equipment for cargo securement across South Africa and all SADC markets since 2002.

Speak to the Toco team on 011 345 8800 or request a quote for ratchet or lever load binders and matched transport chain.

What Toco supplies in load binders

Toco supplies ratchet and lever type load binders for securing loads during transport. A load binder tensions transport chain that is run over a load on a flatbed or trailer, holding it firm so it cannot shift in transit. Toco supplies binders matched to 10 mm and 13 mm transport chain, with the chain and end fittings to suit the securement task. Load binders are part of Toco’s lashing equipment range, alongside transport chain and tie down straps.

Ratchet binder and lever binder, the difference

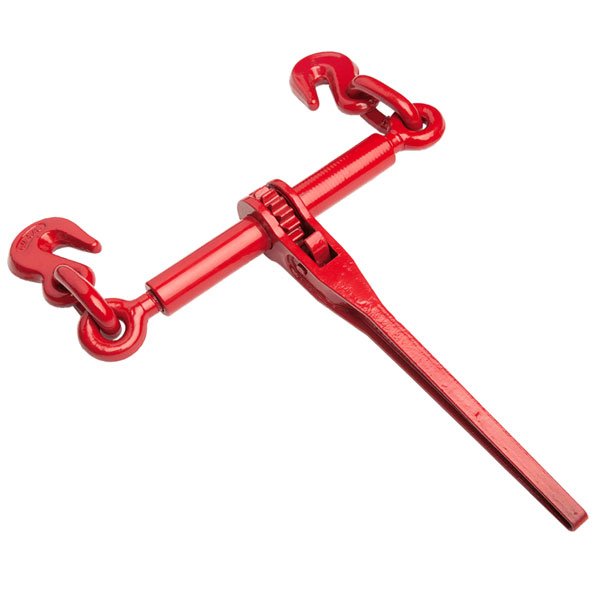

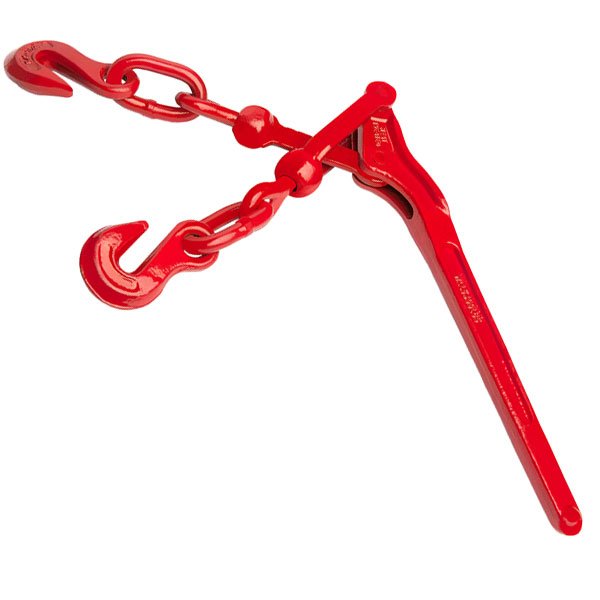

A lever, or snap, binder uses a single over centre lever to take up the slack in one quick movement. It is fast to engage, and the handle is then secured in place. A ratchet binder uses a ratchet mechanism to tension the chain in controlled steps, which gives finer control of the tension and a safer, more gradual release. Toco supplies both so the binder suits the load and the operator’s preference.

Can a load binder be used for lifting?

No. Load binders are designed to tension and secure transport chain over a load for restraint during transport. They are not rated or certified for lifting, and must never be used to lift or suspend a load. For lifting, use rated and certified lifting tackle such as chain slings or steel wire rope slings.

Standards, certification and inspection

Load binders are supplied for cargo securement and used in line with the load restraint standards AS 4344 and EN 12195. As securement devices they are not part of Toco’s LME 008 lifting testing scope. LME No. 008 is Toco’s Department of Labour approval as a Lifting Machinery Entity, held at company level. Manufacturer documentation is supplied on enquiry. Binders and transport chain in service should be inspected before use and withdrawn if the handle, hooks or chain show damage, distortion or wear.

Where load binders are used

Load binders are used wherever heavy loads are moved by road and must be held securely in place. Toco supplies them across sectors, including the applications below.

Sector	Application
Transport and logistics	Securing machinery and cargo on flatbeds and trailers
Construction	Tying down plant and materials for site delivery
Mining	Restraining heavy components and equipment in transit
Heavy haulage	Holding oversized and high mass loads during transport

Toco serves these and other sectors. Tell the team the load and the chain size and they will specify a suitable binder.
