Tractel Winches
Capacities range from 0.8 ton to 4 ton, with a factor of safety of 4:1.
Hand, Tractel & Wire Rope Pulling Winches
Hand Winches; Wire Grips & Ratchet Pullers

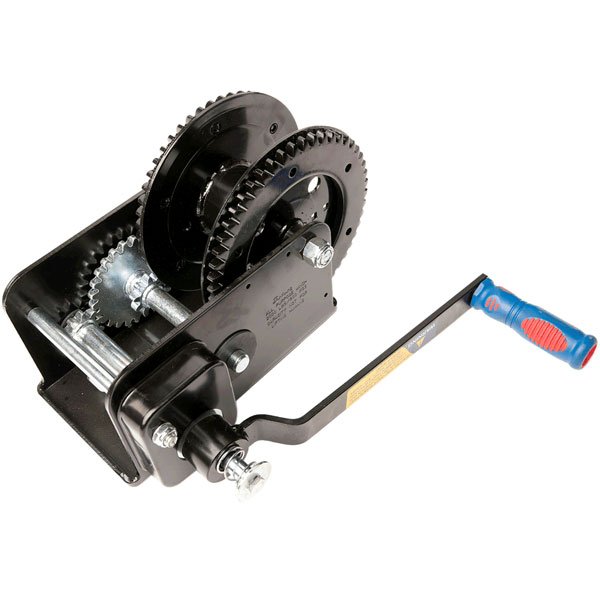

Hand winch
Hand Winches are used for hauling or lifting light loads, with pulling capacities ranging from 386 to 1136 kg of Pulling Force. They are designed for dead-load pulls and have a maximum gradient of 1 in 5. Models fitted with a disc brake system are suitable for lifting purposes.

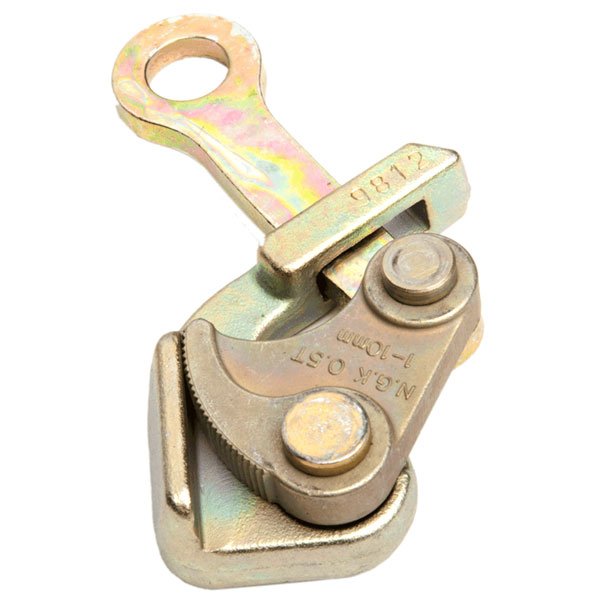

Wire grip
Wire Grips are used when temporary tensioning to wire rope is required, with capacities ranging from 0.5 ton to 4 tons.

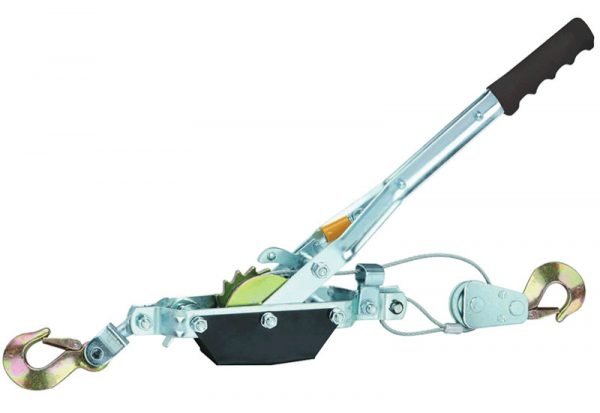

Ratchet puller
Ratchet pullers are hand-operated winches with a ratchet used to pull objects and are not used for overhead lifting, They are available in 2 Ton and 4 Ton capacities.
- Supplied by a registered LME (LME 008)
- Enquiry only, quoted to your load
Delivery and lead time: [DELIVERY & LEAD TIME: CONFIRM WITH TOCO]
Hand winches, wire grips and ratchet pullers are hand-operated pulling and tensioning devices supplied by Toco Lifting across South Africa for hauling, tensioning and securing loads. As a registered Lifting Machinery Entity (LME No. 008), Toco supplies these tools and issues the correct certification for the equipment class.
Toco Lifting holds Lifting Machinery Entity registration LME No. 008 under the Driven Machinery Regulations of the Occupational Health and Safety Act, with technical oversight by Anton van Staden, an ECSA-registered Lifting Machinery Inspector (Reg. #201112078).
What is a hand winch used for?
A hand winch is a manually operated device used for hauling or lifting light loads, with pulling capacities ranging from 386 to 1,136 kg of pulling force. Hand winches are designed for dead-load pulls and have a maximum gradient of 1 in 5. Models fitted with a disc brake system are suitable for lifting purposes, while standard models are intended for pulling. Toco can advise on the right model for your duty.
What is a wire grip used for?
A wire grip is used when temporary tensioning of wire rope is required, with capacities ranging from 0.5 ton to 4 tons. It clamps onto the rope to apply or hold tension during installation or adjustment, then releases when the work is done. Toco supplies wire grips across the capacity range for line tensioning and rigging tasks.
What is a ratchet puller used for?
A ratchet puller is a hand-operated winch with a ratchet mechanism, used to pull and tension objects. Ratchet pullers are available in 2 ton and 4 ton capacities and are not used for overhead lifting. They suit pulling, tensioning and load-securing tasks on site. Toco can advise on the correct capacity for the job.
Which tool is right for the job?
Choose a hand winch for hauling light loads on a low gradient, with a disc-brake model where lifting is required; a wire grip for temporary wire rope tensioning; and a ratchet puller for pulling and tensioning where overhead lifting is not involved. Matching the tool and capacity to the task is essential; Toco’s team can advise on the right device.
Applications
Hand winches, wire grips and ratchet pullers are used across mining, construction, power-line work and general industry for hauling, tensioning, line stringing and load securing. Toco supplies these tools and lifting tackle nationally and across the SADC region.
Compliance
LME No. 008 · LEEASA Standard Member #LEEASA-SUB-00102 · COET Member #8000134 · ECSA-registered LMI Anton van Staden #201112078 · DMR 18(5) of the OHS Act, 1993.
Frequently asked questions
Can a hand winch be used for lifting?
Hand winches are primarily designed for dead-load pulls on a maximum gradient of 1 in 5. Models fitted with a disc brake system are suitable for lifting purposes; standard models are intended for pulling. Confirm the model and its rating with Toco before using a hand winch to lift.
What capacities are hand winches available in?
Hand winches offer pulling capacities ranging from 386 to 1,136 kg of pulling force. The right capacity depends on the load and the gradient. Toco can advise on the correct model for your hauling or lifting task.
What is a wire grip and what capacities are available?
A wire grip is used for temporary tensioning of wire rope, with capacities ranging from 0.5 ton to 4 tons. It clamps the rope to hold tension during installation or adjustment. Toco supplies wire grips across the range for rigging and line work.
Can a ratchet puller be used for overhead lifting?
No. Ratchet pullers are hand-operated winches with a ratchet, used to pull and tension objects, and are not used for overhead lifting. They are available in 2 ton and 4 ton capacities. For overhead lifting, use equipment rated and certified for that purpose.
What is the difference between a wire grip and a ratchet puller?
A wire grip clamps wire rope to apply temporary tension, while a ratchet puller is a ratchet-operated hand winch for pulling and tensioning objects. Both are hand-operated; the right choice depends on whether you are tensioning a rope or pulling a load. Toco can advise on the correct tool.
Does Toco certify these tools?
Toco is registered as LME No. 008 and issues certification matched to the equipment class for the tackle it supplies. Speak to our team about the certification and inspection your application requires. Need a hand winch, wire grip or ratchet puller supplied? Request a quote or speak to the Toco Lifting team. Related: Wire Rope Pulling Winch · SWR Reeving Blocks · Lifting Equipment Testing & Certification · About Toco Lifting
